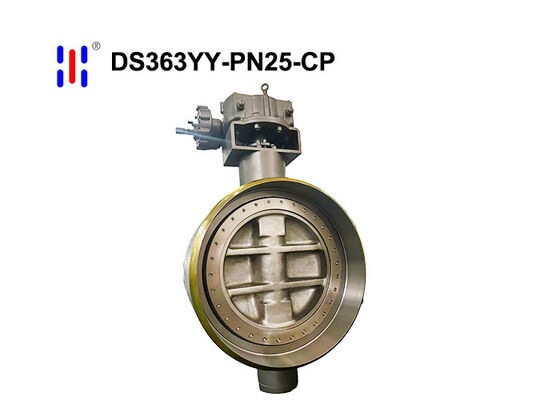

Power Plant PN25 CR Cast Steel Triple Offset Butterfly Valve DN500 Butt Weld Hard Seal

Power Plant PN25 CR Cast Steel Triple Offset Butterfly Valve DN500 Butt Weld Hard Seal

Product Features

      When operating conditions involve medium- to high-pressure, high-temperature media and media containing abrasive particles, the temperature resistance, pressure-bearing capacity and wear resistance of standard soft-seal butterfly valves reach their limits, whilst traditional gate valves suffer from drawbacks such as their bulky size, slow opening and closing, and difficult maintenance. This DN500 large-bore butt-welded triple-eccentric metal hard-seal butterfly valve utilises a gradient material combination of a WCB carbon steel body paired with a CF8M stainless steel disc, and is rated to a nominal pressure of PN25. Utilising an all-metal hard-on-hard sealing pair and triple-eccentric rotation technology, it provides a fluid control solution for heavy-duty industrial pipelines that combines high pressure resistance, high-temperature resistance and a long service life, redefining sealing reliability under severe operating conditions.

Product Advantages

   ● Eschewing the gasket-seal structures typical of traditional flange and lug connections, this valve employs a direct butt-weld connection between the valve body and the pipeline. Once welded, the valve body and pipeline become a single unit, forming a continuous pressure-bearing passage without any breaks, thereby completely eliminating the risk of leakage caused by flange sealing surfaces or gasket ageing.
  ● Featuring an all-metal-to-metal hard-seal pairing, the sealing surfaces of the valve seat and disc undergo precision grinding and surface hardening treatments. The high hardness and exceptional wear resistance of these surfaces enable them to withstand long-term erosion from media such as high-temperature steam and hot oil, with a temperature range far exceeding that of standard soft-seal valves. Additionally, they possess exceptional resistance to particle erosion, making them highly resistant to pitting and damage when handling media containing fine impurities or dust.
  ● The entire drive system is a purely mechanical structure, requiring no external power or compressed air supply and containing no vulnerable electronic components. It can operate reliably in complex environments such as high-temperature conditions, explosion-proof zones, remote outdoor pipelines and emergency response scenarios. With its simple and reliable design and extremely low routine maintenance costs, it is the standard drive solution for high-pressure industrial pipelines that combines both cost-effectiveness and safety.

Design Standards

Product detail

Application

    Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.

About Us

Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!

Our Workshop

F&Q

Customer Service

1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2.  Your inquiry related to our products or price will be replied in 24hrs.
3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
4.  one-year warranty toproducts.
