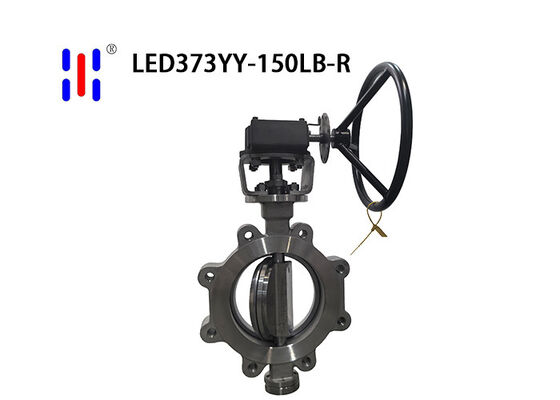

Lug Butterfly Valve Flange Type 8in 150LB Chemical Triple Offset Stainless Steel

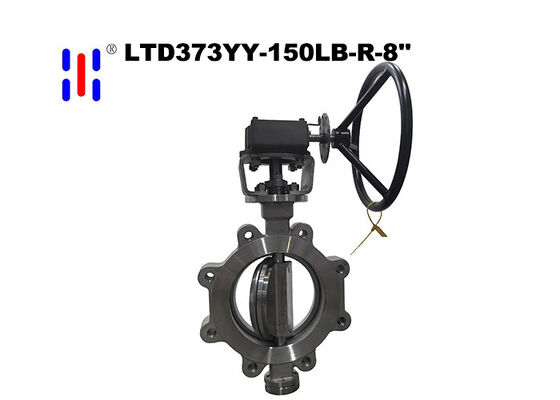

8 Inch Lug Type 150LB 316 SS for Chemical Service Triple Offset Butterfly Valve

Product Features

     316 austenitic stainless steel, with a molybdenum content of 2.0–3.0% and a PREN value of ≥24; offers three times the resistance to chloride ion pitting corrosion compared to 304; Class 150LB nominal pressure; wide operating temperature range of -196°C to 200°C; 8-inch standard branch pipe diameter; Triple-offset all-metal hard seal, meeting the ANSI Class VI zero-leakage standard, supports independent pipe end cutting.

Product Advantages

   ● The lug-type connection features short bolts with low creep, ensuring clamping force does not decay over time. Bolts on both sides apply force independently, preventing additional compression on the sealing surface and inherently reducing the risk of external leakage.
Manual operation provides intuitive opening indication, allowing for instant visual determination of valve status on-site, making it suitable for frequent operation and isolation during maintenance. The triple-offset torque-driven seal tightens as the valve closes; sealing force is derived from handwheel torque, and increased torque locks out leakage as pressure rises.

Design Standards

Product detail

Application

    Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.

About Us

Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!

Our Workshop

F&Q

Customer Service

1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2.  Your inquiry related to our products or price will be replied in 24hrs.
3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
4.  one-year warranty toproducts.
