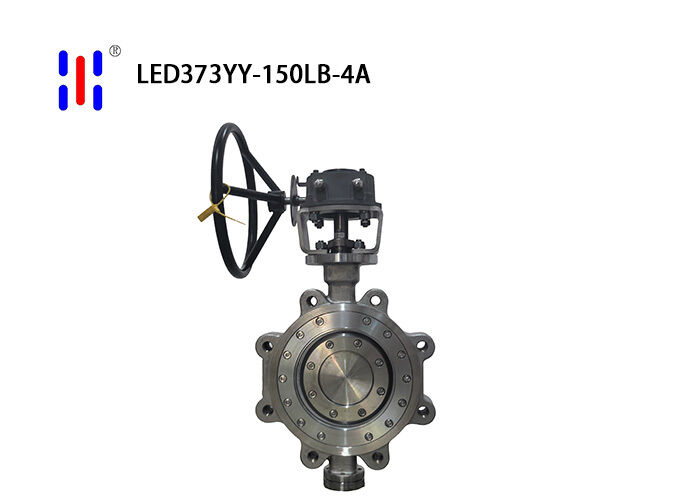

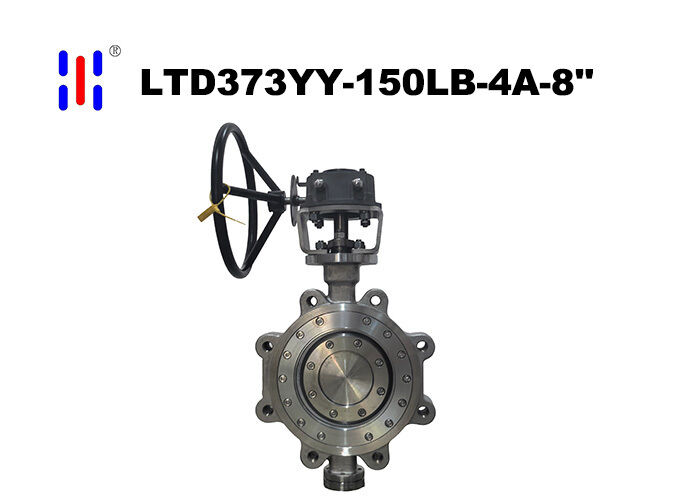

8 Inch Lug 150LB Duplex 2205 Triple Offset Butterfly Valve Chemical Plant

Product Features

     Made of 4A duplex stainless steel with a PREN value of ≥35, offering resistance to chloride ion corrosion, weak acids, and seawater erosion; Class 150LB nominal pressure, with stable operation across a wide temperature range of -40°C to 315°C; DN200 (8-inch) standard branch diameter for easy installation and maintenance; triple-offset metal hard-seal design ensures frictionless opening and closing, meeting the ANSI Class VI zero-leakage standard; manually operated for simple and reliable operation.

Product Advantages

   ● Each lug is directly secured to the pipe flange with short bolts; the bolts do not penetrate the valve body, resulting in a lighter weight compared to a double-flange structure.
  ● All flow-through components, including the valve body and disc, are made of 4A duplex stainless steel. The duplex microstructure provides high strength and exceptional corrosion resistance, with a pitting resistance equivalent (PREN) of over 35, effectively withstanding pitting and stress corrosion in seawater, acidic brine, dilute sulfuric acid, and chlorine-containing media.
  ● The sealing surface is overlaid with Stellite alloy, with a hardness of HRC 65, providing direct resistance to erosion from sand-laden seawater, acidic crystalline particles, and steam-induced rust. Its service life is several times longer than that of soft seals.

Design Standards

Product detail

Application

    Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.
