PN10 Metal To Metal Butterfly Valves Triple Eccentric ISO API 609

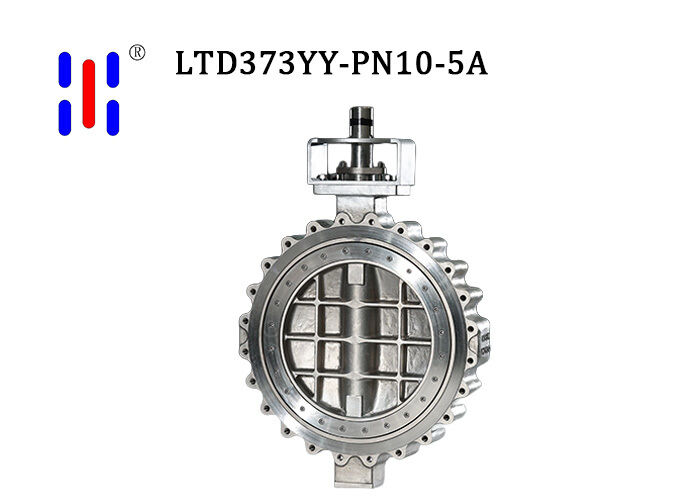

Self-Sealing Super Duplex 2507 Lug PN10 Triple Offset Butterfly Valve

Product Features

      Made of 5A super duplex stainless steel, it withstands extreme corrosive media such as strong acids and high-chlorine environments; with a nominal pressure of PN10, it is ideally suited for low-pressure process pipelines. Combining a full-metal hard-seal design with a triple-eccentric opening and closing mechanism, it completely eliminates the problems of soft seal aging and leakage.

Product Advantages

  ●  The wedge-tightening effect of the triple-offset structure converts medium pressure into sealing force, achieving Class VI airtightness in both forward and reverse directions, making it suitable for pump inlets/outlets or bidirectional flow without directional restrictions.
All flow-through components, including the valve body and disc, are made of 5A Super Duplex Stainless Steel (ASTM A995 Gr.5A). Through synergistic strengthening with high chromium, high molybdenum, and high nitrogen content, achieving a Pitting Resistance Equivalent (PREN) exceeding 40. In extremely corrosive media such as high-temperature, high-chloride brine, hot concentrated sulfuric acid, phosphoric acid, seawater, and hydrometallurgical leachate, it demonstrates near-immune resistance to pitting, crevice corrosion, and stress corrosion.
  ● Each lug features a threaded hole, allowing bolts to be directly tightened to the valve body; even after the downstream pipeline is removed, the valve remains locked against upstream media.

Design Standards

Product detail

Application

    Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.

About Us

Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!

Our Workshop

F&Q

Customer Service

1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2.  Your inquiry related to our products or price will be replied in 24hrs.
3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
4.  one-year warranty toproducts.
