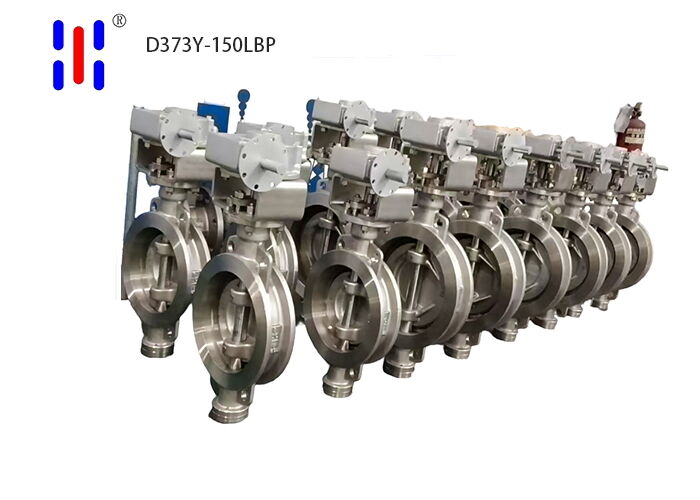

All Metal Seated Wafer 150LB 304 SS Triple Offset Butterfly Valve

All Metal Seated Wafer 150LB 304 SS Triple Offset Butterfly Valve
All Metal Seated Wafer 150LB 304 SS Triple Offset Butterfly Valve

Large Image :  All Metal Seated Wafer 150LB 304 SS Triple Offset Butterfly Valve

Product Details:
Place of Origin: China
Brand Name: YuGong
Certification: CE,API 607,API 609，ISO,TS,EAC
Model Number: D373Y-150LB-P
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 100USD
Packaging Details: Select the appropriate wooden crate based on the valve's design
Delivery Time: 20 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 1000pcs/Mon
Contact Now Chat Now

All Metal Seated Wafer 150LB 304 SS Triple Offset Butterfly Valve

Description
Body Material: WCB,LCB,CF8,CF3,2205,2507,904L,etc. Stem Packing: PTFE,EPDM,WCB,SS,Graphite,Hard Treatment(Stellite,Cr),Low Leakage,Lip Seal,etc.
Size: DN50-DN1600 Operator: Manual,Pneumatic,Hydraulic,Electric
Connection: Wafer，flange，lug，Butt-welded Test & Inspect Standard: API 598,EN 12266,GB/T13927
NDT: UT,RT,PT,MT
Highlight:

150lb wafer butterfly valves

,

150lb metal to metal butterfly valves

,

triple wafer butterfly valves

All-Metal Seated Wafer 150LB 304 SS Triple Offset Butterfly Valve

Product Features

      Precision-forged for high-temperature and long-life shut-off applications. Featuring a 304 stainless steel all-metal body and Class 150LB low-pressure load-bearing capacity, it combines a hard-to-hard sealing technology without soft seals with a triple-offset design to achieve exceptional control with temperature resistance, no aging, zero friction, and zero leakage.


Product Advantages

  ● The valve body and disc are constructed entirely from 304 austenitic stainless steel. With superior resistance to oxidation and uniform corrosion, the valve operates reliably in non-corrosive or mildly corrosive media such as steam, hot water, oils, gases, and organic solvents, meeting engineering material requirements.
  ● The wafer-type, slim-profile design is secured by through bolts. Its lightweight and compact size significantly saves installation space and costs while reducing pipeline support loads.
The sealing pair features 304 stainless steel hard alloy surfacing, ensuring a tight metal-to-metal seal.



Design Standards

Technique request

Standard

Design Standard

API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527

Face to Face Standard

ASME B16.10

Connection standard

ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1

Test & Inspect Standard

API 598,EN 12266,GB/T13927

Nominal Dimension

2”- 100”

Connection type

BW, RF, RTJ. FF

Fungtive Emission Testing

 ISO 15848



Product detail

All Metal Seated Wafer 150LB 304 SS Triple Offset Butterfly Valve 0





Application

    Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.



About Us

Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!

All Metal Seated Wafer 150LB 304 SS Triple Offset Butterfly Valve 1

Our Workshop

All Metal Seated Wafer 150LB 304 SS Triple Offset Butterfly Valve 2

All Metal Seated Wafer 150LB 304 SS Triple Offset Butterfly Valve 3

All Metal Seated Wafer 150LB 304 SS Triple Offset Butterfly Valve 4

All Metal Seated Wafer 150LB 304 SS Triple Offset Butterfly Valve 5

All Metal Seated Wafer 150LB 304 SS Triple Offset Butterfly Valve 6

All Metal Seated Wafer 150LB 304 SS Triple Offset Butterfly Valve 7



F&Q

Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,10~60days.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A:  30% T/T in advance ,balance before shippment.

Customer Service

  1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
  2.  Your inquiry related to our products or price will be replied in 24hrs.
  3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
  4.  one-year warranty toproducts.
