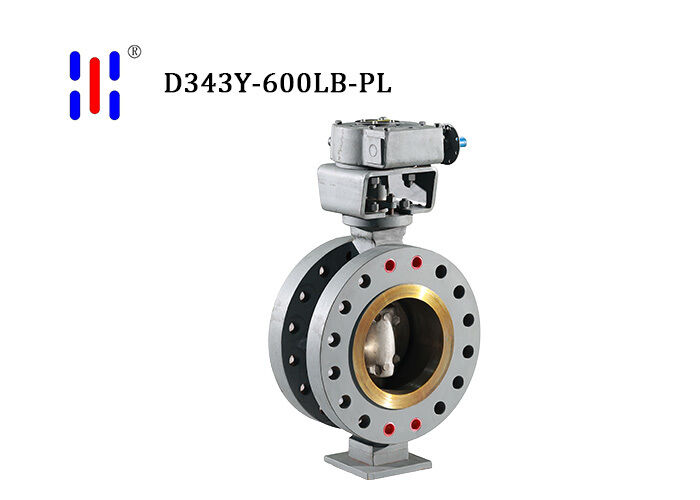

Pneumatic High Temperature Butterfly Valve DN50 - DN1600 Triple Offset Valve

Motorized High Temp Triple Offset Butterfly Valve  600LB Flanged 304L DN200

Product Features

    Tailored specifically for high-temperature, high-pressure, clean, and mildly corrosive pipelines requiring extensive welding. Constructed from 304L ultra-low-carbon stainless steel, it eliminates the risk of intergranular corrosion after welding and is fully capable of withstanding Class 600LB high-pressure, high-temperature operating conditions. Combining the welding safety of ultra-low-carbon stainless steel with the long-lasting durability of a solid metal hard seal, it achieves reliable, leak-free shut-off without the need for an external power source.

Product Advantages

   ● Equipped with a worm gear gearbox that significantly amplifies the torque of the handwheel, allowing a single operator to open and close 600LB high-temperature, large-bore valves with minimal effort.
  ● All flow-through components, including the valve body and disc, are manufactured from 304L ultra-low-carbon austenitic stainless steel. Whilst retaining the excellent high-temperature oxidation resistance and uniform corrosion resistance of 304, the ultra-low-carbon design eliminates the risk of intergranular corrosion in the heat-affected zone during welding at source, ensuring long-term safety following on-site welding and installation.
  ● The triple-offset design utilises a three-dimensional offset between the valve stem axis and the sealing surface, ensuring that the disc immediately disengages from the seat upon opening and only makes contact with the sealing surface during the final stage of closing. This design eliminates sliding friction during operation, significantly reducing wear on the sealing surfaces and substantially extending the valve’s service life.

Design Standards

Product detail

Application

    Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.

About Us

Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!

Our Workshop

F&Q

Customer Service

1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2.  Your inquiry related to our products or price will be replied in 24hrs.
3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
4.  one-year warranty toproducts.
