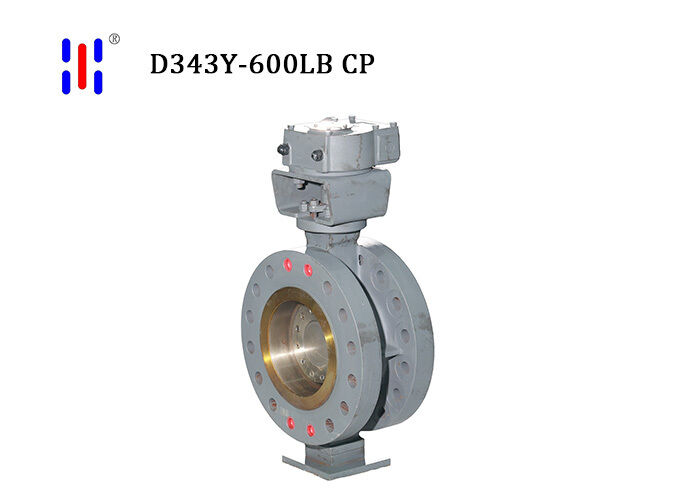

Carbon Steel High Temperature Butterfly Valve SS304 Disc Triple Eccentric Valve

Carbon Steel Body 304 Disc Flanged 600LB High Temp Triple Offset Butterfly Valve

Product Features

     Forged from a single piece of WCB carbon steel, it maintains stable pressure resistance across a wide temperature range of -29°C to 425°C; the flow path is made of 304 stainless steel, preventing rust and scale build-up whilst ensuring no secondary contamination of the medium; with a nominal pressure of Class 600LB, it is perfectly suited for high-pressure, high-temperature applications; the all-metal hard seal ensures frictionless operation and zero leakage during opening and closing. With well-balanced overall performance, it offers far better value for money than all-stainless steel solutions.

Product Advantages

   ● The valve body is constructed from WCB cast carbon steel, combining excellent high-temperature strength, thermal fatigue resistance and toughness to provide a robust pressure-bearing framework; the disc and sealing surfaces are made from 304 austenitic stainless steel, which, thanks to its outstanding resistance to high-temperature oxidation and uniform corrosion, maintains the integrity of the sealing surfaces over the long term in non-corrosive or mildly corrosive media such as high-pressure steam, high-temperature oils and heat transfer fluids.
  ● Based on a three-dimensional eccentric geometric design, the automatic wedging effect ensures that the higher the medium pressure, the greater the sealing contact pressure, resulting in a tighter seal as the valve closes, thereby significantly extending the valve’s service life.
  ● The valve features a 304 metal sealing face combined with a multi-layer composite of high-temperature-resistant flexible graphite, offering both the rigid support of metal and the high-temperature micro-compensating elasticity of graphite.

Design Standards

Product detail

Application

    Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.

About Us

Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!

Our Workshop

F&Q

Customer Service

1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2.  Your inquiry related to our products or price will be replied in 24hrs.
3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
4.  one-year warranty toproducts.
