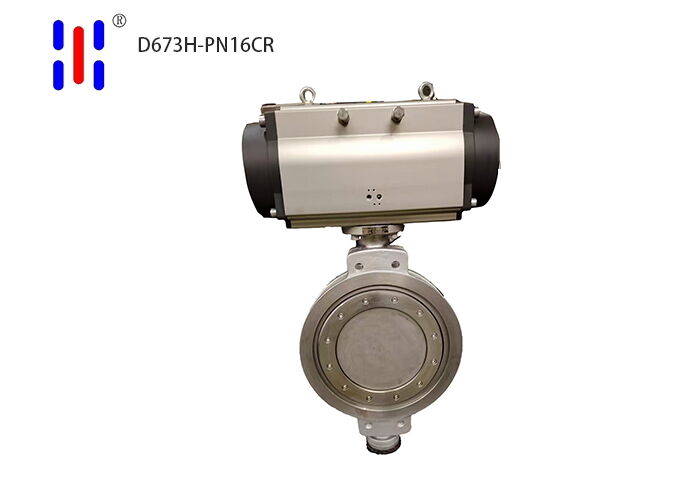

Pneumatic Wafer PN16 Triple Offset Butterfly Valve Carbon Steel with 316 Trim

Pneumatic Wafer PN16 Triple Offset Butterfly Valve Carbon Steel with 316 Trim

Product Features

     The WCB carbon steel body provides exceptional resistance to impact and water hammer, while the 316 stainless steel sealing surfaces withstand mild to moderate corrosion and particle erosion; the PN16 nominal pressure is suitable for the vast majority of medium-pressure industrial pipelines; the wafer-type design is lightweight and space-saving, facilitating easy installation and maintenance; the pneumatic actuator enables millisecond-level rapid opening and closing; The triple-offset hard-seal design ensures friction-free operation throughout the entire opening and closing cycle, providing a tight seal with zero leakage. With outstanding overall performance, it is the ideal choice for automated control in harsh operating conditions.

Product Advantages

  ● The pneumatic drive can be integrated with a positioner for precise regulation; the fail-safe mode (FC/FO) ensures automatic reset in the event of air or power loss, meeting ESD emergency shutdown and safety interlock requirements.
  ● The valve body is made of WCB cast carbon steel, providing high strength, toughness, and resistance to thermal fatigue, while effectively absorbing pipeline stress and pressure pulsations; the disc and sealing surfaces are made of 316 austenitic stainless steel, which, thanks to its excellent corrosion and oxidation resistance, maintains long-term integrity of the sealing surfaces in steam, thermal oil, petroleum products, mildly corrosive media, and gases.
  ● Based on a three-dimensional eccentric geometric design, the operating torque is extremely low, significantly reducing the size of the pneumatic actuator and air consumption.

Design Standards

Product detail

Application

    Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.

About Us

Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!

Our Workshop

F&Q

Customer Service

1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2.  Your inquiry related to our products or price will be replied in 24hrs.
3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
4.  one-year warranty toproducts.
