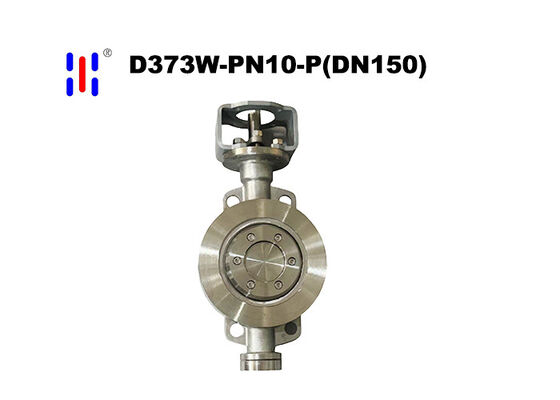

DN150 Wafer 10K 316 SS Power Plant Triple Offset Butterfly Valve
Product Features
This PN10 DN150 all-316 manual worm gear wafer-type triple-eccentric butterfly valve is specifically designed for low-pressure, high-flow, mildly corrosive, and high-frequency control applications. The entire series features valve bodies and discs precision-crafted from 316 stainless steel, combined with a lightweight wafer-type installation structure, a precision worm gear control system, and triple-eccentric wear-free hard-seal technology. With its high-grade materials, stable performance, and extremely low operating and maintenance costs, it is the preferred choice for standardized upgrades in low-pressure corrosion-resistant pipeline networks.
Product Advantages
● Utilizing a mature and upgraded three-dimensional triple-eccentric rotary structure, the valve achieves a precise, tight seal only when fully closed. Upon closure, it forms a self-adaptive wedge-shaped self-tightening seal that automatically compensates for the sealing gap based on medium pressure. With exceptional pressure adaptability, it maintains a tight seal even under unstable low-pressure conditions, significantly extending the valve’s service life.
● The sealing surfaces undergo ultra-precision machining and one-to-one matched lapping, ensuring precise control over flatness and roundness. Upon closure, they achieve uniform contact around the entire circumference, generating sufficient sealing pressure even under PN10 low-pressure conditions to achieve a bubble-level, zero-leakage seal.
● Featuring an industry-preferred ultra-thin wafer-type design, the valve body is lightweight and compact, eliminating the need for flange-mounted counterweights and significantly reducing overall weight. It supports bidirectional installation and can be secured simply by clamping it between standard PN10 flanges, eliminating the need for hot work welding or complex accessories. The installation process is extremely streamlined, doubling construction efficiency.
Design Standards
|
Technique request
|
Standard
|
|
Design Standard
|
API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527
|
|
Face to Face Standard
|
ASME B16.10
|
|
Connection standard
|
ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1
|
|
Test & Inspect Standard
|
API 598,EN 12266,GB/T13927
|
|
Nominal Dimension
|
2”- 100”
|
|
Connection type
|
BW, RF, RTJ. FF
|
|
Fungtive Emission Testing
|
ISO 15848
|
Product detail
Application
Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.
About Us
Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!
Our Workshop
F&Q
| Q: Are you trading company or manufacturer ? |
| A: We are a factory. |
| Q: How long is your delivery time? |
| A: According to the order,10~60days. |
| Q: Do you provide samples ? Is it free or extra ? |
| A: Yes, we could offer the sample for free charge but do not pay the cost of freight. |
| Q: What is your terms of payment ? |
| A: 30% T/T in advance ,balance before shipment. |
Customer Service
- Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
- Your inquiry related to our products or price will be replied in 24hrs.
- Keep informing our customer production process and help arrange quality checking in the factory if necessary.
- one-year warranty toproducts.
