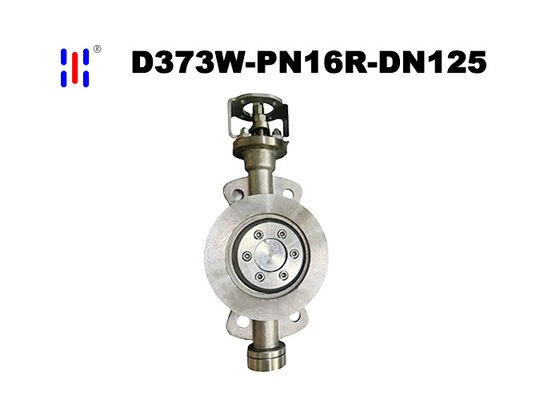

Chemical Service Wafer Triple Offset Butterfly Valve in 316 Stainless Steel for Triple Eccentric Pipeline Control

Chemical Service DN125 Wafer PN16 316 Triple Offset Butterfly Valve

Product Features

      This manual worm-gear wafer-type triple-eccentric butterfly valve maintains high quality standards even for small-diameter models. The valve body and disc are precision-cast from 316 stainless steel throughout, precisely matched to the PN16 nominal pressure rating and standard Chinese national nominal diameters. Centered on triple-eccentric wear-free sealing technology, it delivers a corrosion-resistant flow control solution for low-pressure, small-to-medium-diameter pipelines—ensuring “one-time installation and long-term maintenance-free operation”—and provides trunk-line-level durability even in branch line applications.

Product Advantages

    ● The valve features a metal hard seal pair made of the same 316 stainless steel material. The sealing surfaces undergo precision machining and matched lapping, ensuring uniform and controllable contact gaps around the entire circumference. Even under low-pressure PN10 conditions, this design generates sufficient sealing pressure to achieve bubble-level zero leakage, addressing the common issues of leakage in standard soft-seal low-pressure applications and the tendency for adhesion and aging during long-term inactivity.

   ● To meet flow control requirements for small-to-medium diameters (DN125), the worm gear transmission ratio has been specifically optimized. The handwheel rotates smoothly with uniform, gentle torque, allowing a single operator to easily complete the full 0–90° opening and closing cycle. It also enables precise adjustment of minute valve openings, making it perfectly suited for fine-tuning flow in process branch lines.

   ● Compared to flanged valves of the same specification, the wafer-type design significantly reduces the difficulty of installation and removal. During retrofits of aging branch lines or equipment maintenance and replacement, the valve body can be quickly removed by simply loosening the bolts without disturbing surrounding pipelines, effectively shortening downtime. This makes it particularly suitable for batch upgrades of branch pipeline networks with numerous, widely dispersed points.

Design Standards

Product detail

Application

    Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.

About Us

Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!

Our Workshop

F&Q

Customer Service

1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2.  Your inquiry related to our products or price will be replied in 24hrs.
3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
4.  one-year warranty toproducts.
