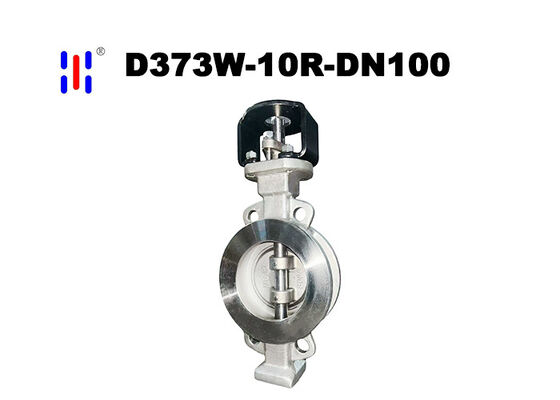

DN100 Wafer Type 10K 316 Triple Offset Butterfly Valve Water Treatment

DN100 Wafer Type 10K 316 Triple Offset Butterfly Valve Water Treatment

Product Features

      This PN10 DN100 all-316 manual worm gear wafer-type triple-eccentric butterfly valve is precisely designed to meet the PN10 light-pressure rating and DN100 standard industrial nominal diameter specified by Chinese national standards. The entire valve body and disc are fully constructed from corrosion-resistant 316 stainless steel. Combined with a lightweight wafer-type design, precise worm gear control, and triple-eccentric wear-free sealing technology, it is specifically engineered for low-pressure, corrosive, and high-frequency on-off operating conditions. With its high compatibility, low wear, and long service life, it stands as the preferred upgrade solution for lightweight, corrosion-resistant fluid control.

Product Advantages

    ● Utilizing an upgraded three-dimensional triple-eccentric mechanical structure, the valve precisely calibrates the triple-eccentric trajectory to alter the butterfly disc’s opening and closing path. This ensures that the butterfly disc remains separated from the seat sealing surface throughout the entire rotation process, resulting in zero scraping and zero wear. By eliminating core wear associated with valve operation at its source, it resolves the common issues of seal wear, precision degradation, and increasing leakage that plague conventional butterfly valves during long-term operation.

    ● Featuring a classic ultra-thin wafer-type valve body design without bulky flanges, the valve body has a compact axial dimension and lightweight construction, making it a minimalist installation solution for small- to medium-diameter, low-pressure applications.

    ● Featuring a worm gear drive system specifically optimized for DN100 applications, with a precisely calibrated reduction ratio, it achieves high torque output with minimal input torque. This completely resolves the issues of sticking and heavy operation commonly found in small- and medium-diameter valves. A single operator can easily perform smooth 0–90° full-stroke opening and closing as well as fine flow rate adjustments, with precise and responsive control that remains silent and shock-free throughout the entire process.

Design Standards

Product detail

Application

    Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.

About Us

Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!

Our Workshop

F&Q

Customer Service

1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2.  Your inquiry related to our products or price will be replied in 24hrs.
3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
4.  one-year warranty toproducts.
