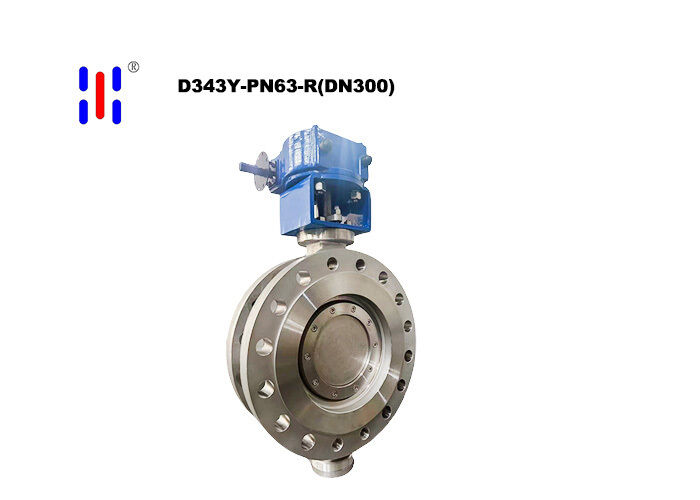

DN300 PN63 Triple Offset Butterfly Valve Flanged Metal Seated 316 Trim

DN300 PN63 Triple Offset Butterfly Valve Flanged Metal Seated 316 Trim

Product Features

     In PN63 medium- to high-pressure fluid pipelines, a valve’s maximum pressure rating, corrosion resistance, and seal service life directly determine the operational safety and maintenance costs of the entire system. The high cost of all-alloy construction, coupled with the inability of standard materials to withstand the dual challenges of high pressure and corrosion, has long been a common challenge in industry selection. This manual worm-gear triple-eccentric hard-seal butterfly valve, innovatively employs a gradient material configuration of a “304 stainless steel pressure-bearing valve body + 316 stainless steel disc with STL hard alloy surfacing.” Precisely engineered for a DN300 nominal diameter and PN63 nominal pressure, its layered reinforcement design optimally allocates the three key performance attributes—pressure resistance, corrosion resistance, and wear resistance—to their respective roles, delivering a highly reliable, cost-effective, and long-lasting fluid control solution for medium- and high-pressure corrosive environments.

Product Advantages

   ●  The valve body features a one-piece high-pressure flange structure, with the flange and body cast as a single unit from the same material—eliminating welded joints and stress concentration points. The flange thickness, bolt hole diameters, and quantity are strictly matched to the requirements of the PN63 pressure rating. During installation, the valve is secured to the pipeline flange using high-strength bolts, ensuring uniform force distribution across the entire sealing surface. This prevents off-center loading and warping under high pressure, and, when combined with a sealing gasket, achieves a stable and reliable static seal.
   ● To address the significant opening and closing resistance of the DN300 large butterfly disc under high PN63 pressure differentials, the product is equipped with a heavy-duty worm gear drive mechanism. Featuring a high-reduction-ratio transmission design and a multi-pivot low-friction bearing configuration, it efficiently amplifies the operating torque in stages. A single operator can smoothly complete the full 0°–90° opening and closing cycle and fine-tune the valve opening by turning the handwheel. The torque remains uniform and smooth throughout the entire process, with no jamming or dead spots, making manual operation of high-pressure, large-diameter valves effortless.
STL cobalt-based alloy combines high hardness with excellent toughness. Not only can it withstand the sealing contact pressure generated by PN63-grade high pressure—without the crushing, puncturing, or deformation issues common in soft seals—but it also effectively resists erosion and wear caused by fine particles in high-pressure media. Its applicable temperature range spans ambient to medium-high temperatures, and it maintains stable performance without degradation under alternating hot and cold conditions.

Design Standards

Product detail

Application

    Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.

About Us

Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!

Our Workshop

F&Q

Customer Service

1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2.  Your inquiry related to our products or price will be replied in 24hrs.
3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
4.  one-year warranty toproducts.
