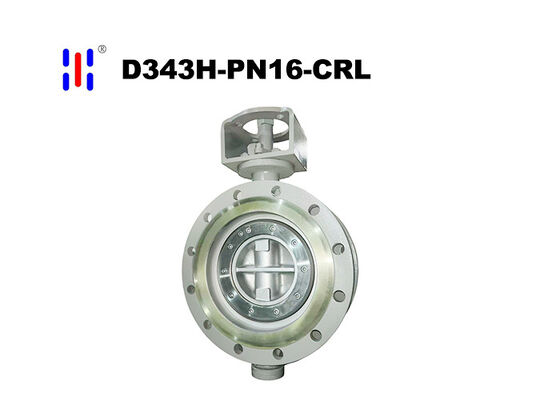

Chlor Alkali Plant DN300 PN16 316L Cast Worm Flanged Hard Seal Triple Offset Butterfly Valve

Triple Offset Butterfly Valve Textile Process DN150 PN16 WCB Cast Worm Flanged Hard Seal

Product Features

     The PN16 DN300 manual worm gear flanged triple-eccentric multi-layer butterfly valve features a WCB carbon steel valve body combined with a CF3M ultra-low-carbon stainless steel disc, utilizing a differentiated alloy composition to specifically meet dual requirements for pressure resistance and corrosion resistance. It incorporates a rigid structure with GB-standard flanges, a labor-saving worm gear drive, a composite rigid-flexible multi-layer seal, and triple-eccentric frictionless opening and closing technology, it precisely addresses the selection challenges in large-diameter, medium-pressure pipeline networks with mixed operating conditions, achieving a multidimensional balance of high-strength pressure resistance, long-term corrosion resistance, zero-leakage operation, and low-cost operation and maintenance.

Product Advantages

    ● To address the self-weight of the DN300 large-diameter butterfly disc and the opening/closing resistance caused by the PN16 medium-pressure differential, the worm gear reduction transmission ratio has been specifically optimized, and the heavy-duty meshing structure has been upgraded. This significantly enhances torque amplification efficiency, allowing a single operator to effortlessly perform smooth full-stroke (0–90°) opening and closing as well as stepless, precise flow regulation, thereby eliminating the cumbersome, jerky, and labor-intensive operation typically associated with large-diameter valves.

    ● Based on a proven three-dimensional triple-eccentric design—with a dual-eccentric mechanism (valve stem eccentricity + butterfly disc eccentricity) at its core—and enhanced by precise eccentric optimization of the sealing cone angle, the opening and closing motion trajectory of the large-diameter butterfly disc has been reengineered.

    ● It employs an industry-proven multi-layer stacked sealing structure that combines the dual advantages of flexible seals—which provide elastic contact—and metal seals—which offer rigid impact resistance—thereby overcoming the performance limitations of single-seal designs.

Design Standards

Product detail

Application

    Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.

About Us

Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!

Our Workshop

F&Q

Customer Service

1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2.  Your inquiry related to our products or price will be replied in 24hrs.
3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
4.  one-year warranty toproducts.
