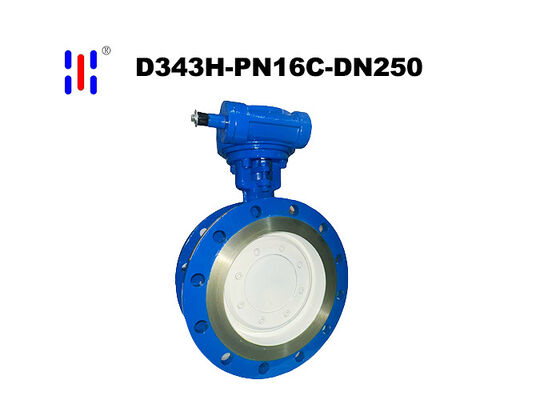

     The PN16 DN250 flanged triple-eccentric multi-layer butterfly valve features an industrial-grade WCB carbon cast steel body designed for heavy-duty pressure applications. It incorporates a multi-layer sealing system with a gradient-layered configuration of “flexible seal + rigid support + metal body,” combined with an integrated heavy-duty flange and high-torque worm gear drive, and a three-dimensional triple-eccentric frictionless opening/closing mechanism, it achieves zero leakage across all operating conditions—from low pressure to the PN16 rated pressure—providing a long-lasting, highly reliable, and low-maintenance fluid control solution for medium-pressure, high-flow main pipeline networks.

Product Advantages

    ●  The flange faces are equipped with a guide and positioning structure, enabling precise and efficient alignment during the hoisting and installation of large-diameter valves, effectively reducing the difficulty of on-site alignment; The sealing surfaces undergo high-precision single-clamping machining with strict control over flatness and concentricity, ensuring a stable static seal when paired with specialized medium-pressure gaskets. During future maintenance or replacement, the valve can be disassembled and reassembled independently without disrupting the main pipelines on either side, significantly reducing downtime for maintenance on the main pipeline network and lowering operational costs and safety risks.

    ●  For the DN250 large-diameter sealing surface, the complete absence of friction eliminates wear during opening and closing of the large sealing surface, maximizing the protection of the integrity and precision of the multi-layer sealing structure. This ensures that sealing performance remains stable and meets standards even after 1,000 cycles of opening and closing, thereby extending the valve’s overall service life many times over. When the valve is closed, the conical sealing surface creates a natural wedge-shaped self-tightening effect; the higher the working pressure of the medium, the tighter the seal. A reliable seal is maintained across the entire pressure range from low pressure to the PN16 rated pressure, adapting to pressure fluctuations in the main pipeline network.

    ●  The mechanism incorporates a built-in mechanical self-locking device with strong locking force, which securely locks the butterfly disc in place at any opening position. Even when subjected to instantaneous water hammer impacts or reverse thrust from the medium, the butterfly disc will not shift or displace, fully ensuring the flow control accuracy of the main pipeline network. The entire drive system features a purely mechanical structure, requiring no external power or air supply and eliminating the risk of electrical sparks, making it suitable for industrial facilities with high explosion-proof requirements, such as those in the chemical and energy sectors; With no vulnerable electrical components and wear-resistant, durable transmission parts, the valve requires only simple lubrication for long-term, stable operation, resulting in extremely low maintenance costs.

Design Standards

Product detail

Application

    Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.
