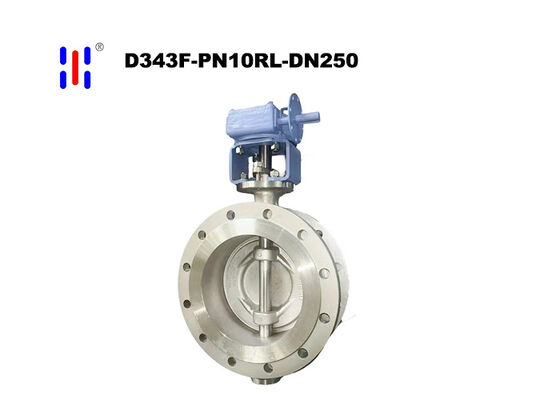

316L Stainless Steel Triple Offset Flanged Butterfly Valve with Soft Seal for PN10 Low Pressure and Zero Leakage

Triple Offset Flanged Soft Seal Butterfly Valve Paper Process Water PN10 DN250 316L Cast Worm

Product Features

     When high-flow transportation meets stringent requirements for cleanliness and corrosion resistance, and when low-pressure operating conditions test the precision of zero-leakage control, the DN250-class low-pressure pipeline sector has long lacked a standard option that balances material purity, sealing reliability, and long-term cost-effectiveness. Standard 304 valve bodies are prone to intergranular corrosion cracking after welding; large-diameter soft-seal valves suffer from high opening and closing friction, leading to premature seal failure and leakage; while hard-seal valves exhibit poor contact at low pressures, resulting in micro-leakage. The combination of these multiple shortcomings frequently creates a dilemma when selecting the right valve for specific operating conditions. This PN10 DN250 flanged triple-offset soft-seal butterfly valve features a valve body and disc cast as a single piece from 316L ultra-low-carbon austenitic stainless steel. It seamlessly integrates a triple-offset frictionless opening and closing mechanism with an elastic soft-seal system. With core performance characteristics of full-chain corrosion resistance, zero leakage at low pressure, and long-term durability, it delivers a high-standard fluid control solution for low-pressure, high-flow clean and mildly corrosive applications.

Product Advantages

    ● It employs a high-performance, corrosion-resistant elastic soft-seal seat that forms an elastic sealing pair with the 316L stainless steel disc. Leveraging the material’s inherent elastic deformation capability, it generates sufficient and uniform sealing pressure even under PN10 low-pressure conditions, achieving bubble-level zero leakage. This addresses the common issue of micro-seepage in hard-seal valves under low-pressure conditions and fully meets the stringent “zero drip” requirements for clean media and environmental protection applications.

   ● The valve body and both end flanges are integrally cast from the same 316L material, eliminating welded joints and dissimilar-material connections. This avoids common industry issues such as preferential corrosion in welded areas and the accumulation of dirt and debris; the flow-through surfaces are smooth, continuous, and free of dead corners.

   ● To address the opening and closing resistance associated with the large DN250 butterfly disc, the worm gear transmission ratio has been specifically optimized. Combined with a 316L stainless steel valve stem and a multi-pivot friction-reducing support structure, torque is transmitted efficiently and smoothly, A single operator can easily complete the full 0–90° opening and closing cycle and fine-tune the valve opening by turning the handwheel. The operation feels smooth and consistent throughout, with no sticking or jamming, shattering the conventional perception that large-diameter valves are difficult to operate.

Design Standards

Product detail

Application

    Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.

About Us

Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!

Our Workshop

F&Q

Customer Service

1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2.  Your inquiry related to our products or price will be replied in 24hrs.
3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
4.  one-year warranty toproducts.
