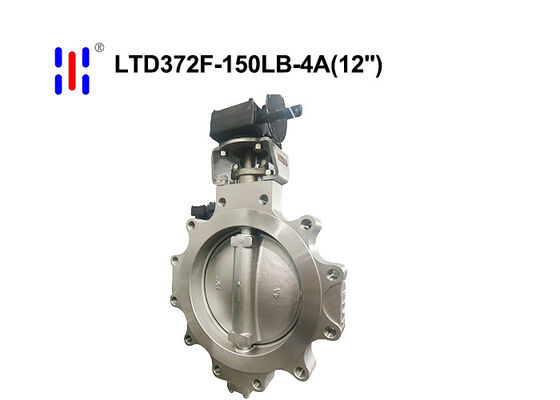

Triple Offset Butterfly Valve for Gas Transmission 12Inch 150LB 4A Duplex Steel Lug Soft Seal

Triple Offset Butterfly Valve for Gas Transmission 12Inch 150LB 4A Duplex Steel Lug Soft Seal

Product Features

   4A duplex steel is inherently chlorine-resistant, PTFE is impervious to acids and alkalis, with a 12-inch large-bore flow path and precise 150LB pressure rating—for low- to medium-pressure pipelines carrying chlorine-containing, seawater or acidic process media where pipe ends must be sealed off. Combining the corrosion resistance of a material with a yield strength twice that of 304 stainless steel with the chemical inertness of PTFE, it forges a leak-free, dead-end fortress that can be shut off at a moment’s notice.

Product Advantages

   ● The valve body and disc are made entirely of 4A duplex stainless steel, comprising approximately equal parts ferritic and austenitic phases, with a PREN value of ≥34. This provides inherent immunity to chloride ion pitting, crevice corrosion and stress corrosion cracking, ensuring a service life in seawater that far exceeds that of 304/316 grades.
  ● The lug-type design features integral threaded holes, allowing downstream pressure to remain unrelieved during disassembly; a single valve serves dual purposes at pump outlets, tank bases and reserved ports.
  ● The double-eccentric structure ensures that the valve stem axis is offset from both the centre of the disc and the centre of the valve body passage; as the disc rotates, it moves away from the seat, meaning the PTFE seal ring is virtually unaffected by scraping during opening and closing, resulting in a service life several times longer than that of traditional centre-line butterfly valves.

Design Standards

Product detail

Application

    Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.

About Us

Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!

Our Workshop

F&Q

Customer Service

1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2.  Your inquiry related to our products or price will be replied in 24hrs.
3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
4.  one-year warranty toproducts.
