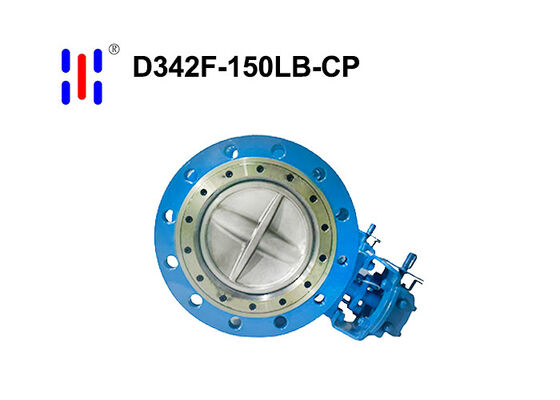

Class150 Cast Carbon Steel Flanged Soft Seal Triple Offset Butterfly Valve for Petrochemical

Class150 Cast Carbon Steel Flanged Soft Seal Triple Offset Butterfly Valve for Petrochemical

Product Features

   The main body is constructed from WCB carbon steel, providing a strong structural framework and a solid foundation for withstanding pressure; the flow passage is made of 304 stainless steel, ensuring both a smooth surface for media flow and corrosion resistance; PTFE (polytetrafluoroethylene) is used for the seals, which, thanks to its extremely high chemical inertness, can withstand both acidic and alkaline media. The 12-inch large-bore design meets high-flow requirements, while the 150-lb pressure rating is precisely suited for medium- and low-pressure operating conditions. The three material layers each serve a specific function and complement one another’s strengths, creating a purely manual, zero-leakage shut-off hub for medium- and low-pressure, large-bore pipelines carrying corrosive, clean, or mildly corrosive media.

Product Advantages

  ● The worm gear’s step-by-step transmission allows for precise adjustment of the valve opening, facilitating system flow regulation.
  ● The PTFE seal ring is virtually impervious to chemical corrosion, and its elastic compensation ensures bidirectional zero leakage in accordance with ANSI Class VI standards.
  ● The double-eccentric design causes the valve stem axis to deviate simultaneously from both the center of the disc and the center of the valve body passage. As the disc rotates, it immediately moves away from the seat; during opening and closing, the PTFE seal ring experiences virtually no scraping, resulting in a service life several times longer than that of traditional center-line butterfly valves.

Design Standards

Product detail

Application

    Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.

About Us

Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!

Our Workshop

F&Q

Customer Service

1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2.  Your inquiry related to our products or price will be replied in 24hrs.
3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
4.  one-year warranty toproducts.
