DN350 Triple Eccentric Butterfly Valves Duplex 2205 Triple Wafer And Lug Type Valves

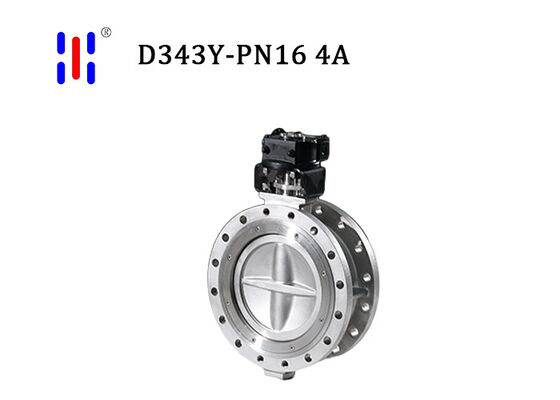

DN350 PN16 Flanged Duplex 2205 Triple Offset Butterfly Valve for Oil

Product Features

     The DN350 large-diameter design allows for direct connection to mainstream process pipelines without the need for size reduction, ensuring safe high-flow transportation with low pressure loss while reducing system energy consumption. Core flow-through components, including the valve body and disc, are constructed entirely from 4A duplex stainless steel (ASTM A995 Gr. 4A). Through an optimal balance of chromium, molybdenum, and nitrogen, the pitting resistance equivalent (PREN) exceeds 35, providing robust resistance to pitting, crevice corrosion, and stress corrosion cracking. The PN16 pressure rating fully accounts for water hammer impacts and pressure fluctuations associated with large valve discs, ensuring that the valve structure remains distortion-free and the seal remains consistently reliable during long-term operation.

Product Advantages

  ● The composite sealing pair, consisting of a metal hard seal and flexible graphite, eliminates rubber and PTFE—elastic components prone to aging—thereby fundamentally preventing cold flow, thermal creep, and elastic failure.
  ● Flanged connections provide superior alignment during installation in large-diameter applications and effectively absorb thermal expansion and contraction of pipelines as well as mechanical stress.
Based on a three-dimensional eccentric design, the operating torque is extremely low, allowing for easy integration with small actuators. This design also generates an automatic wedging effect—the higher the medium pressure, the greater the sealing contact pressure, resulting in a tighter seal and exponentially extended service life.

Design Standards

Product detail

Application

    Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.

About Us

Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!

Our Workshop

F&Q

Customer Service

1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2.  Your inquiry related to our products or price will be replied in 24hrs.
3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
4.  one-year warranty toproducts.
