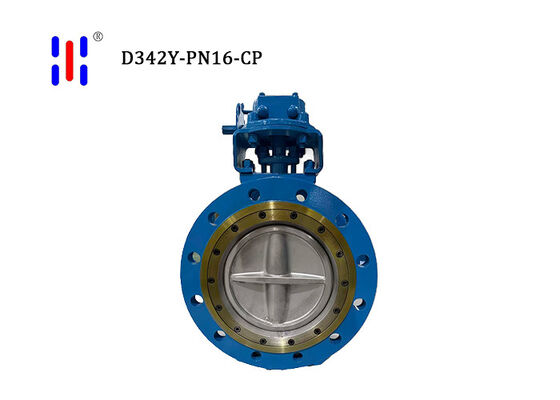

PN16 Cast Butterfly Valve Double Flange Double Eccentric Wafer Lug Type

PN16 Cast Multi-Layer Hard-Seal Double-Eccentric Butterfly Valves

Product Features

     The PN16 pressure rating covers the design pressures of industrial cooling water, compressed air, and general oil and gas pipeline networks, ensuring stable operation without increasing costs. The valve body is made of WCB carbon steel, providing all the structural strength required for piping at a controlled cost. The butterfly disc is constructed from 304 stainless steel, creating a rust-proof barrier on the side in direct contact with the medium.

Product Advantages

  ● The sealing surface is overlaid with HRC65-hardness material, resisting erosion from rust in steam pipelines, sand particles in water, and coke fines in oil and gas. It maintains contact without wear, offering a service life several times longer than that of soft seals. The double-offset disc moves away from the seat as soon as it rotates, ensuring near-zero friction across the entire opening and closing cycle, significantly reducing wear and operating torque. The circumferential multi-bolt flange configuration forms a closed load-bearing ring. Pipeline thrust and thermal expansion moments are dispersed by the flange ring, preventing lateral tension on the gasket and ensuring the seat remains flat and does not warp over long service periods.

Design Standards

Product detail

Application

    Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.

About Us

Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!

Our Workshop

F&Q

Customer Service

1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2.  Your inquiry related to our products or price will be replied in 24hrs.
3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
4.  one-year warranty toproducts.
