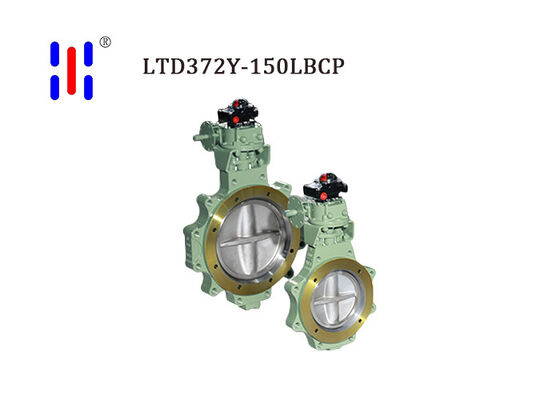

SS304 Lug Hard Seal Low Pressure Steam Double Offset High Performance Butterfly Valve

Lug WCB/304 Hard-Seal Butterfly Valve for Low-Pressure Steam

Product Features

  The valve body is made of WCB cast carbon steel, offering high strength and excellent rigidity. Carbon steel offers excellent machinability and weldability, facilitating the surfacing of hard alloy sealing surfaces inside the valve body and the installation of various actuators. The disc is made of 304 stainless steel, which contains 18%–20% chromium and 8%–10.5% nickel, providing excellent corrosion resistance in air, water, steam, and various mildly corrosive media. The use of 304 material for the disc effectively prevents the rusting and erosion of carbon steel discs by mildly corrosive media, significantly extending the disc’s service life and preventing rust contamination of the medium.

Product Advantages

  ●The hard seal combines corrosion resistance with wear resistance; the all-metal structure withstands high temperatures, resists aging, and is erosion-resistant; the valve body is made of WCB carbon steel, keeping costs under control; the disc is made of 304 stainless steel, enhancing the corrosion resistance of components in constant contact with the medium, resulting in high overall cost-effectiveness. Each lug requires only one set of bolts, greatly simplifying the tightening process, improving installation efficiency, and saving on gasket and fastener costs. The double-offset design ensures the disc disengages from the seat the moment it opens. Throughout the entire opening and closing process, there is virtually no sliding or scraping between the metal sealing surfaces, significantly reducing wear. This is the key to the long service life of all-metal hard-seal butterfly valves.

Design Standards

Product detail

Application

    Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.

About Us

Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!

Our Workshop

F&Q

Customer Service

1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2.  Your inquiry related to our products or price will be replied in 24hrs.
3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
4.  one-year warranty toproducts.
