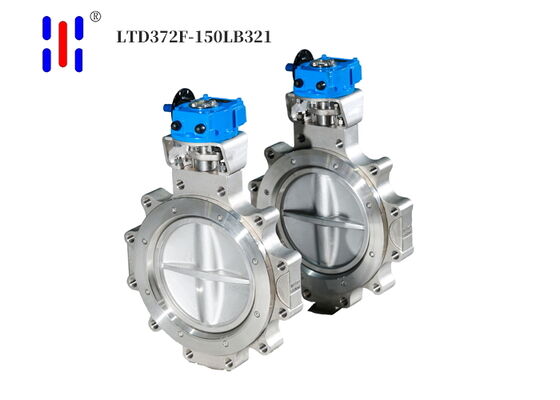

321 SS Lug High Temp Soft Seal Butterfly Valves for Steam Tracing Pipelines

321 SS Lug High Temp Soft Seal Butterfly Valves for Steam Tracing Pipelines
321 SS Lug High Temp Soft Seal Butterfly Valves for Steam Tracing Pipelines

Large Image :  321 SS Lug High Temp Soft Seal Butterfly Valves for Steam Tracing Pipelines

Product Details:
Place of Origin: China
Brand Name: YuGong
Certification: CE,API 607,API 609，ISO,TS,EAC
Model Number: LTD372F-150LB-321
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 100USD
Packaging Details: Select the appropriate wooden crate based on the valve's design
Delivery Time: 20 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 1000pcs/Mon
Contact Now Chat Now

321 SS Lug High Temp Soft Seal Butterfly Valves for Steam Tracing Pipelines

Description
Body Material: WCB,LCB,CF8,CF3,2205,2507,904L,etc. Stem Packing: PTFE,EPDM,WCB,SS,Graphite,Hard Treatment(Stellite,Cr),Low Leakage,Lip Seal,etc.
Size: DN50-DN1600 Operator: Manual,Pneumatic,Hydraulic,Electric
Connection: Wafer，flange，lug，Butt-welded Face To Face Standard: ASME B16.10
Highlight:

ss double offset butterfly valve

,

ss double eccentric butterfly valves

,

high temp double offset butterfly valve

321 SS Lug High Temp Soft Seal Butterfly Valves for Steam Tracing Pipelines

Product Features

    The 321 stainless steel grade incorporates titanium (Ti) as a stabilizing element, effectively suppressing the precipitation of chromium carbides at grain boundaries. As a result, this valve is particularly suitable for applications where solution annealing cannot be performed after welding, thereby preventing intergranular corrosion at the welds. This material offers excellent resistance to intergranular corrosion.


Product Advantages

  ●Threaded lugs on the valve body allow the downstream piping to be removed separately without disassembling the entire valve. This is highly advantageous for systems requiring periodic inspection or maintenance of downstream equipment. The soft-seated valve seat achieves bubble-tight sealing even under low-pressure or vacuum conditions, making it suitable for media requiring strict shutoff.

  ●The double-offset design ensures virtually frictionless operation of the disc during opening and closing


Design Standards

Technique request

Standard

Design Standard

API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527

Face to Face Standard

ASME B16.10

Connection standard

ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1

Test & Inspect Standard

API 598,EN 12266,GB/T13927

Nominal Dimension

2”- 100”

Connection type

BW, RF, RTJ. FF

Fungtive Emission Testing

 ISO 15848


Product detail

321 SS Lug High Temp Soft Seal Butterfly Valves for Steam Tracing Pipelines 0


Application

    Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.


About Us

Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!

321 SS Lug High Temp Soft Seal Butterfly Valves for Steam Tracing Pipelines 1

Our Workshop

321 SS Lug High Temp Soft Seal Butterfly Valves for Steam Tracing Pipelines 2

321 SS Lug High Temp Soft Seal Butterfly Valves for Steam Tracing Pipelines 3

321 SS Lug High Temp Soft Seal Butterfly Valves for Steam Tracing Pipelines 4

321 SS Lug High Temp Soft Seal Butterfly Valves for Steam Tracing Pipelines 5

321 SS Lug High Temp Soft Seal Butterfly Valves for Steam Tracing Pipelines 6

321 SS Lug High Temp Soft Seal Butterfly Valves for Steam Tracing Pipelines 7


F&Q

Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,10~60days.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A:  30% T/T in advance ,balance before shippment.

Customer Service

  1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
  2.  Your inquiry related to our products or price will be replied in 24hrs.
  3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
  4.  one-year warranty toproducts.
