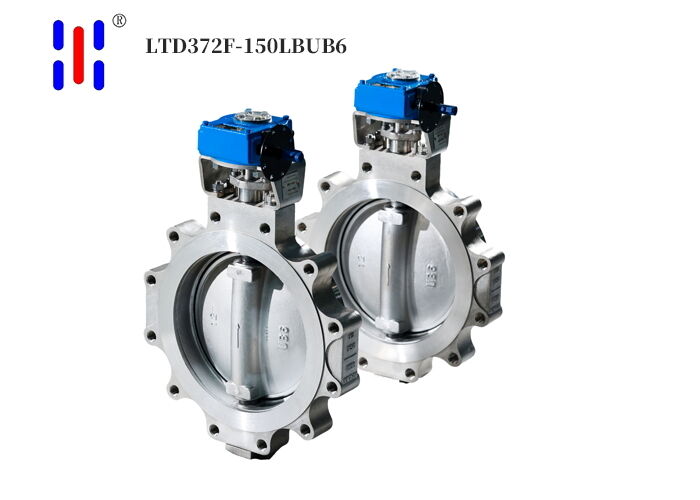

Special Purpose UB6 Nickel Base Alloy Forged Lug Butterfly Valve

Special Purpose UB6 Nickel Base Alloy Forged Lug Butterfly Valve
Special Purpose UB6 Nickel Base Alloy Forged Lug Butterfly Valve

Large Image :  Special Purpose UB6 Nickel Base Alloy Forged Lug Butterfly Valve

Product Details:
Place of Origin: China
Brand Name: YuGong
Certification: CE,API 607,API 609，ISO,TS,EAC
Model Number: LTD372F-150LBUB6
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 100USD
Packaging Details: Select the appropriate wooden crate based on the valve's design
Delivery Time: 20 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 1000pcs/Mon
Contact Now Chat Now

Special Purpose UB6 Nickel Base Alloy Forged Lug Butterfly Valve

Description
Body Material: WCB,LCB,CF8,CF3,2205,2507,904L,etc. Stem Packing: PTFE,EPDM,WCB,SS,Graphite,Hard Treatment(Stellite,Cr),Low Leakage,Lip Seal,etc.
Size: DN50-DN1600 Face To Face Standard: ASME B16.10
Connection: Wafer，flange，lug，Butt-welded Pressure: 150LB-2500LB
Highlight:

ub6 double offset butterfly valve

,

ub6 double eccentric butterfly valves

,

ss double offset butterfly valve

Special Purpose UB6 Nickel Base Alloy Forged Lug Butterfly Valve

Product Features

    The UB6 material contains high levels of chromium, nickel, and molybdenum, with added copper. As a result, it has a high pitting resistance equivalent (PREN value) and effectively resists pitting and crevice corrosion in chloride-containing environments (such as seawater and salt spray).


Product Advantages

  ●The UB6 material offers exceptional acid resistance. This is its most notable advantage. It exhibits particularly excellent corrosion resistance against sulfuric acid across the entire concentration range below 70%, far surpassing conventional 304 and 316L stainless steels. It also offers superior resistance to many organic and inorganic acids, such as phosphoric acid and acetic acid.


Design Standards

Technique request

Standard

Design Standard

API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527

Face to Face Standard

ASME B16.10

Connection standard

ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1

Test & Inspect Standard

API 598,EN 12266,GB/T13927

Nominal Dimension

2”- 100”

Connection type

BW, RF, RTJ. FF

Fungtive Emission Testing

 ISO 15848


Product detail

Special Purpose UB6 Nickel Base Alloy Forged Lug Butterfly Valve 0


Application

    Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.


About Us

Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!

Special Purpose UB6 Nickel Base Alloy Forged Lug Butterfly Valve 1

Our Workshop

Special Purpose UB6 Nickel Base Alloy Forged Lug Butterfly Valve 2

Special Purpose UB6 Nickel Base Alloy Forged Lug Butterfly Valve 3

Special Purpose UB6 Nickel Base Alloy Forged Lug Butterfly Valve 4

Special Purpose UB6 Nickel Base Alloy Forged Lug Butterfly Valve 5

Special Purpose UB6 Nickel Base Alloy Forged Lug Butterfly Valve 6

Special Purpose UB6 Nickel Base Alloy Forged Lug Butterfly Valve 7


F&Q

Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,10~60days.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A:  30% T/T in advance ,balance before shippment.

Customer Service

  1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
  2.  Your inquiry related to our products or price will be replied in 24hrs.
  3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
  4.  one-year warranty toproducts.
