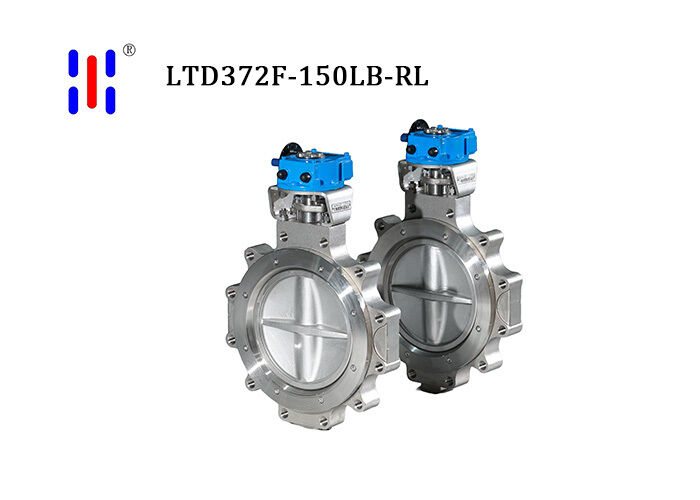

Double Eccentric Soft Seal Butterfly Valves For Fine Chemical Solvent Piping 316L

Double Eccentric Soft Seal Butterfly Valves For Fine Chemical Solvent Piping 316L

Product Features

    The valve body, disc, and other core components are constructed from 316L stainless steel. 316L is an ultra-low-carbon austenitic stainless steel that offers excellent corrosion resistance, particularly against intergranular corrosion, making it suitable for a wide range of chemical media. The soft-seal seats are made of high-performance polymers such as PTFE (polytetrafluoroethylene) and RTFE (reinforced polytetrafluoroethylene). These materials are chemically stable and provide excellent elasticity and temperature resistance (soft-seated valves typically operate between -29°C and +260°C). The disc and stem feature a one-piece, integrated design, which significantly enhances component strength and flow coefficient (Cv). Additionally, the stem incorporates an anti-blowout design to improve operational safety.

Product Advantages
  ●The “disengagement” mechanism upon opening reduces the mechanical friction coefficient between the sealing surfaces to an extremely low level, resulting in less wear and a longer service life.

  ●The low-friction design minimizes the torque required for opening and closing, making operation easier and more effortless. This not only reduces the demands on manual operation but also allows for the use of smaller-sized automatic actuators (such as electric or pneumatic devices), thereby saving on equipment investment.

  ●Lugs refer to threaded protrusions on the valve body that allow the valve to be directly bolted to pipe flanges from both sides. This design makes it particularly suitable for end-of-line applications, as downstream pipelines do not need to be drained during disassembly, facilitating easier maintenance.

Design Standards

Product detail

Application

    Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.

About Us

Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!

Our Workshop

F&Q

Customer Service

1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2.  Your inquiry related to our products or price will be replied in 24hrs.
3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
4.  one-year warranty toproducts.
