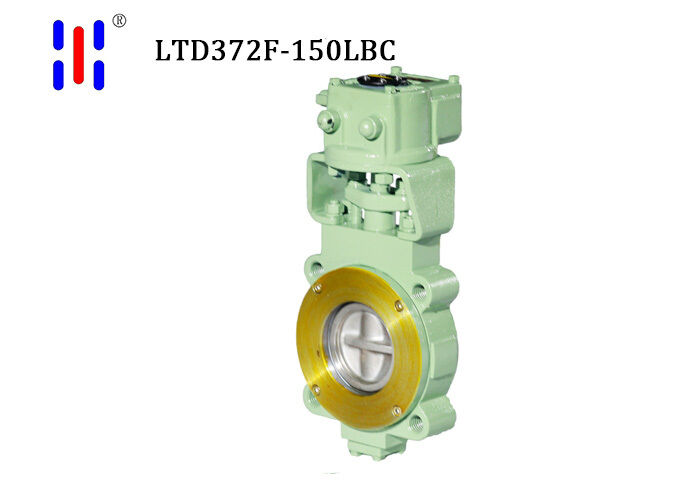

Soft Seal Double Offset Butterfly Valves For Municipal Water Supply & Drainage
Product Features
High-Performance Soft-Seal Seat: The flexible lip-type seat, made of non-metallic materials such as PTFE and RTFE, offers excellent elasticity and self-compensating capability.
Robust Valve Body Material: The valve body is manufactured from carbon steel, which provides high strength at a cost-effective price. Its lug-type design allows it to be clamped directly between pipe flanges using the valve body’s bolt holes.
Wear-Resistant and Corrosion-Resistant Treatment: The disc surface is typically hard-chromium plated and polished to reduce wear on the non-metallic seat and provide a certain degree of corrosion resistance.
Removable Insert Design: The seat uses a split-type insert, allowing for replacement without disassembling the disc or stem.
Product Advantages
●Lightweight and Effortless Operation: Since there is no friction at the sealing surface, the opening and closing torque is low, allowing for the use of smaller actuators, which reduces energy consumption and investment costs.
●Long Service Life: The absence of mechanical scraping, combined with automatic wear compensation of the seat, significantly extends the effective service life of the entire valve.
●Minimal Online Maintenance: Replacing the seat does not require removing the valve from the pipeline or disassembling core components such as the disc and stem, significantly reducing downtime and lowering maintenance costs.
●Quick and Cost-Effective Installation: The lug-type connection eliminates the need for matching flanges and gaskets.
Design Standards
|
Technique request
|
Standard
|
|
Design Standard
|
API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527
|
|
Face to Face Standard
|
ASME B16.10
|
|
Connection standard
|
ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1
|
|
Test & Inspect Standard
|
API 598,EN 12266,GB/T13927
|
|
Nominal Dimension
|
2”- 100”
|
|
Connection type
|
BW, RF, RTJ. FF
|
|
Fungtive Emission Testing
|
ISO 15848
|
Product detail
Application
Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.
