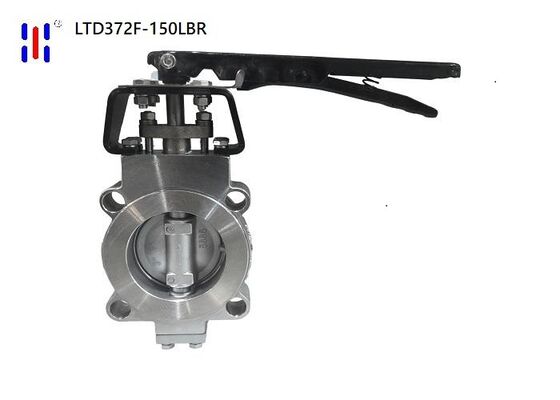

Lug Small Bore Soft Seal Butterfly Valve 150LB Corrosion Resistant

Lug Small Bore Soft Seal Butterfly Valve 150LB Corrosion Resistant

Product Features

   The small-bore lug-type soft-seal butterfly valve is a compact valve specifically designed for precision fluid control applications ranging from DN15 to DN200. Its lug-type connection allows for flexible installation at the end of a pipeline or on a branch line. Combined with the elastic deformation properties of the soft-seal material, it achieves a leak-free seal even in confined spaces, making it an ideal choice for laboratories, fine chemical processing, and small-scale equipment applications.
Product Advantages
  ●High spatial adaptability: The lug-type connection eliminates the need for the long bolts found in wafer-type valves. With a body thickness of only 60% that of a wafer-type butterfly valve of the same diameter, it can be installed in areas with dense equipment or at the end of pipelines, saving over 30% in installation space.
  ●High Sealing Reliability: The elastic compensation properties of the soft sealing material accommodate minor pipeline vibrations or temperature fluctuations, preventing leaks caused by thermal expansion and contraction.
  ●Outstanding ease of maintenance: The seat seal rings feature a snap-on or embedded design. Replacement requires no disassembly of the valve body; simply loosen the lug bolts to remove the old seal ring. Maintenance time is reduced to less than 10 minutes, lowering downtime costs.
  ●Significant cost-effectiveness: The unit price of small-diameter soft-seal butterfly valves is only 50% of that of ball valves of the same specification, and no special tools are required for installation.
  ●Wide Media Compatibility: By replacing the sealing material, the valve can accommodate various media: EPDM is suitable for water and steam (≤120°C), PTFE resists strong acids and alkalis (pH 0–14), and FKM withstands high-temperature oils (≤180°C), meeting diverse requirements.

Design Standards

Product detail

Application

    Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.

About Us

Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!

Our Workshop

F&Q

Customer Service

1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2.  Your inquiry related to our products or price will be replied in 24hrs.
3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
4.  one-year warranty toproducts.
