Lug Connection High Pressure Butterfly Valve 600LB 2500LB Triple Offset Butterfly

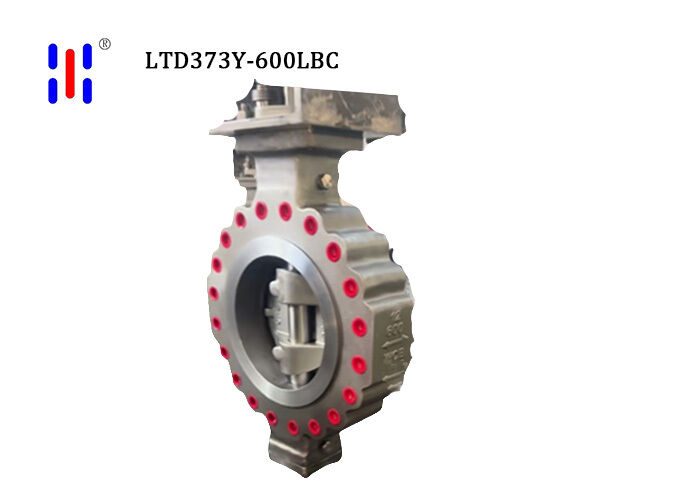

Triple Offset Butterfly Valve with Lug Connection 600LB Carbon Steel High Temp

Product Features

    Crafted from WCB carbon steel to provide a robust defense against high-pressure conditions, the lug-type structure offers the unique advantage of independent sealing at the dead end. With a Class 600LB high-pressure rating, the all-metal hard seal ensures long-term, zero-leakage performance. The self-operating design requires no power source, and a single valve serves both shut-off and blind flange functions. It establishes a safe, reliable, and cost-effective zero-leakage protective barrier for high-pressure pipelines carrying non-corrosive media.

Product Advantages

   ● Each lug is directly secured to the pipe flange with short bolts; the bolts do not penetrate the valve body, resulting in a weight significantly lighter than that of a double-flange structure. Installation and removal are convenient, allowing for in-line replacement without cutting long sections of pipeline; it can serve as an independent shut-off valve at the end of a pipeline, eliminating the need for additional blind flange assemblies.
  ● Equipped with a worm gear gearbox, the self-locking characteristic of the worm gear allows the disc to remain precisely at any opening position without the need for an external brake.

  ● The main components, including the valve body and disc, are made of WCB cast carbon steel, combining excellent high strength and toughness to provide a robust pressure-bearing shell for non-corrosive or mildly corrosive media such as high-pressure steam, thermal oil, petroleum products, and natural gas.

Design Standards

Product detail

Application

    Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.

About Us

Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!

Our Workshop

F&Q

Customer Service

1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2.  Your inquiry related to our products or price will be replied in 24hrs.
3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
4.  one-year warranty toproducts.
